2010 Haas SL-20TB
CNC Lathes • Stock #31172
Machine Highlights
23" swg, 20" centers, 3" Bore, 3400 RPM, 30 hp, 10 pos turret, 10" chk, Tailstock, Chip Conveyor, Big Bore Spindle
Specifications
Equipment & Options
Machine Overview

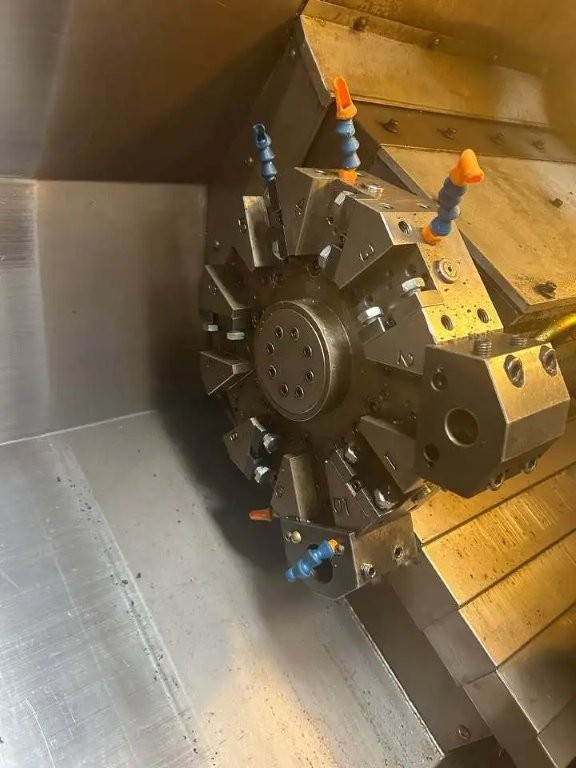

This 2010 Haas SL-20TB Big Bore CNC Lathe provides useful turning capacity with a larger spindle bore for bar work and general production machining. It features a 23″ swing, 10.3″ maximum machining diameter, 24″ between centers, and a 3″ spindle bore with 2.5″ bar capacity. The spindle reaches 3,400 RPM with 30 HP, and the machine is fitted with a 10-position turret for productive CNC turning.

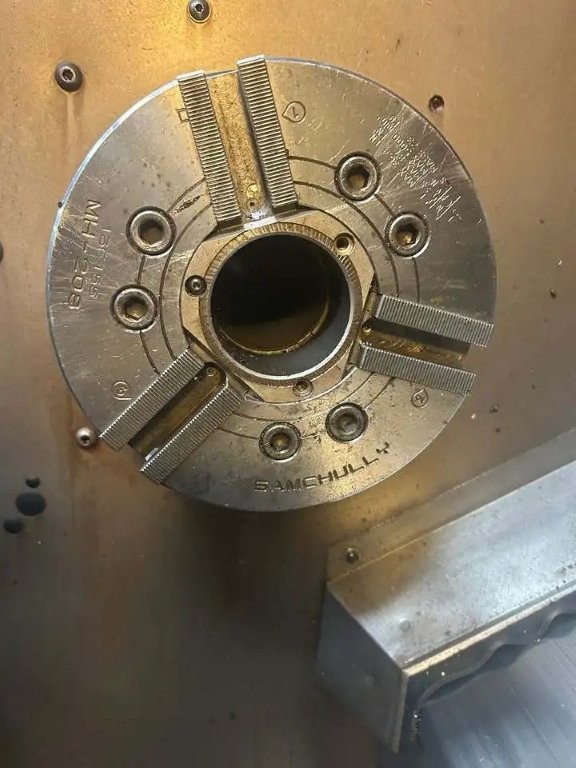

The machine is equipped with a Haas 2-axis CNC control with color monitor, 10″ Kitagawa B-210 3-jaw hydraulic chuck, programmable tailstock, Big Bore spindle, and chip conveyor. The combination of a 2.5″ bar capacity, 30 HP spindle, hydraulic chuck, and tailstock makes this SL-20TB a practical choice for a broad range of shaft, bar, and chucking applications.
