2004 YCM XV-560A
CNC Machining Centers, Vertical • Stock #31170
Machine Highlights
X-22" Y-16.1" Z-18", 10000 rpm, 15 hp, 20 atc
Specifications
Equipment & Options
Machine Overview

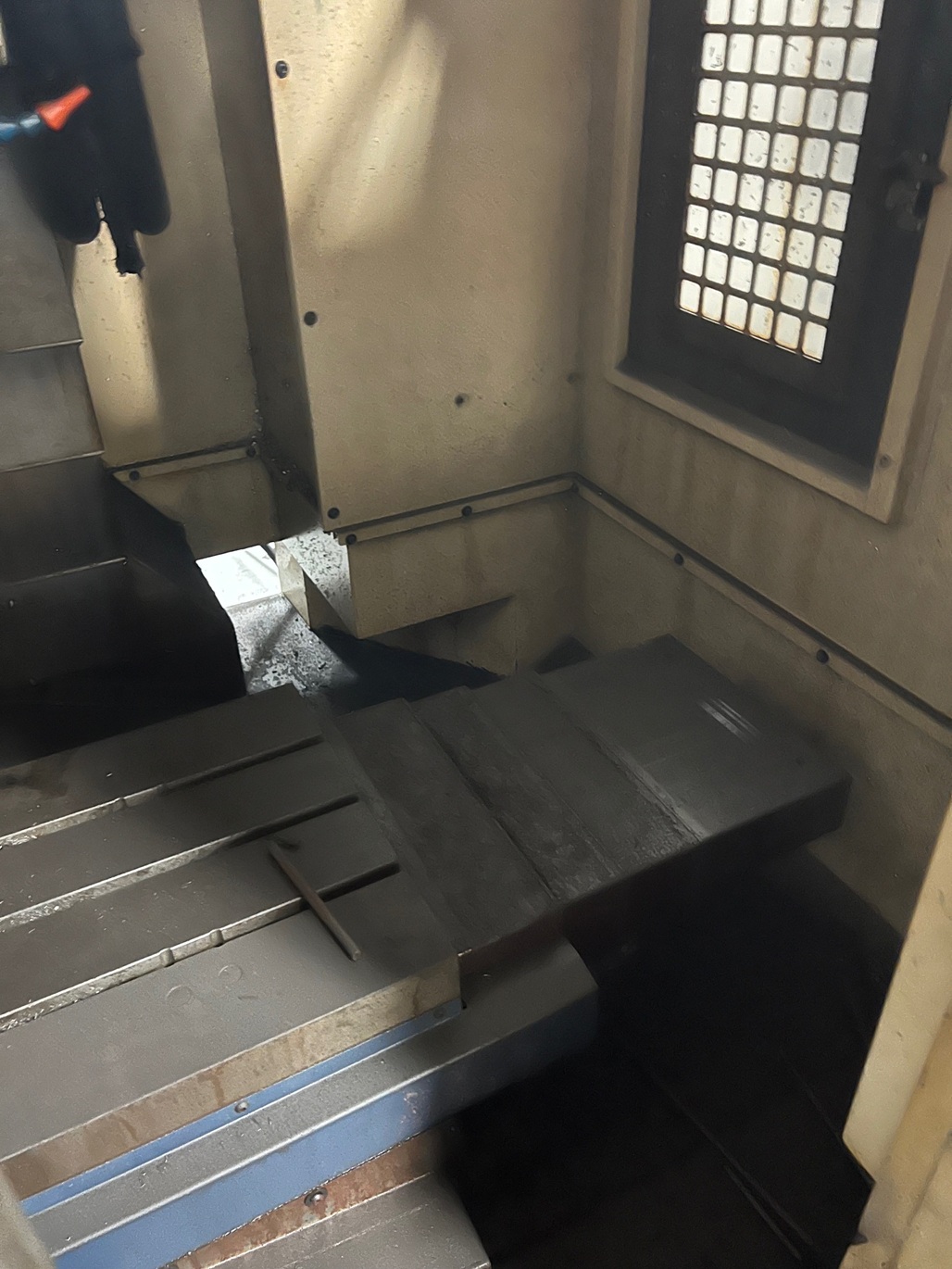

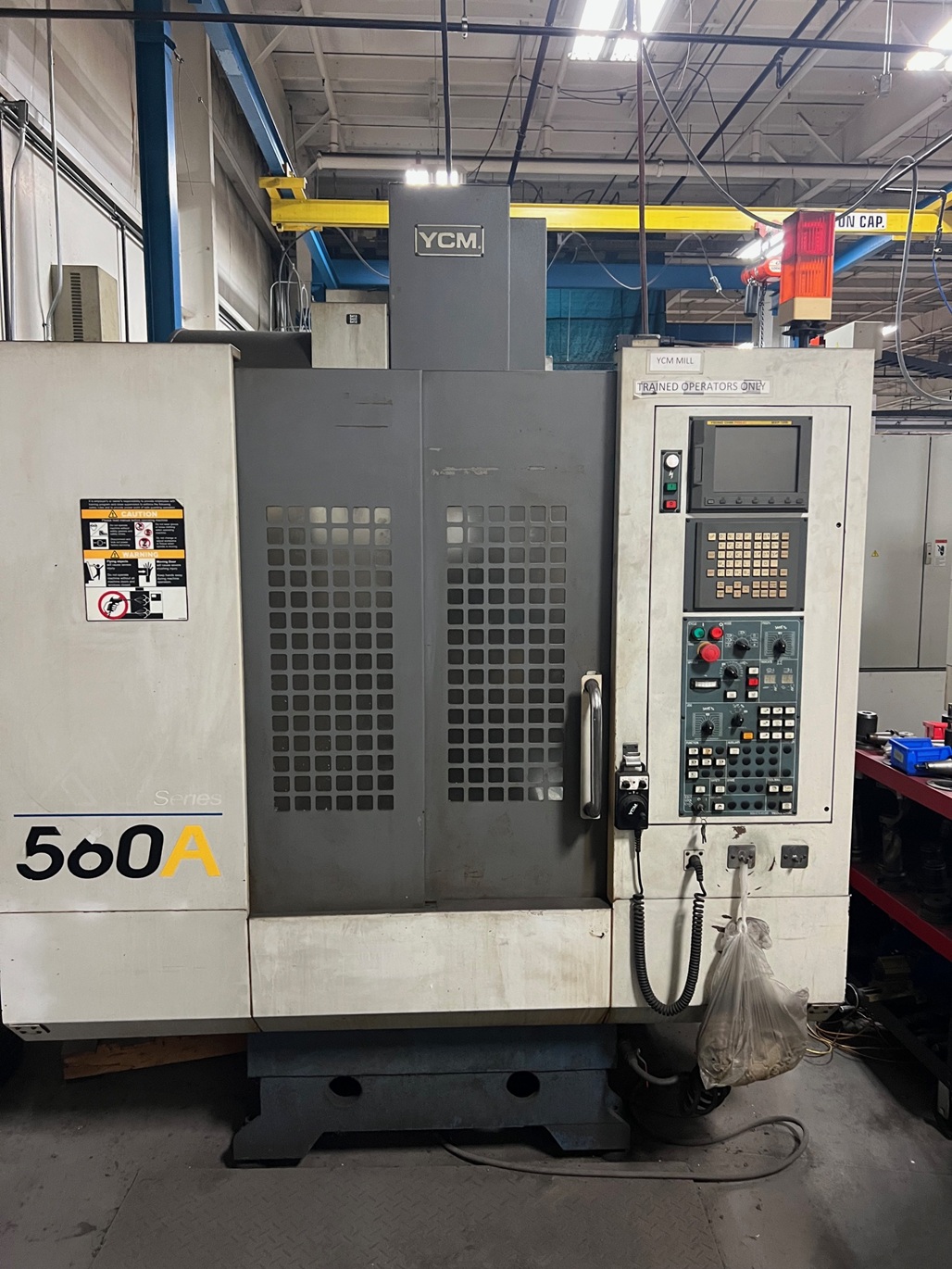

This 2004 YCM XV-560A Vertical Machining Center provides a compact, high-speed machining platform for precision job-shop and production work. It features 22″ X-axis, 16.1″ Y-axis, and 18″ Z-axis travels, a 16.5″ x 27.6″ table rated for up to 660 lbs, a 10,000 RPM CAT 40 spindle powered by a 15 HP motor, and a 20-position automatic tool changer.

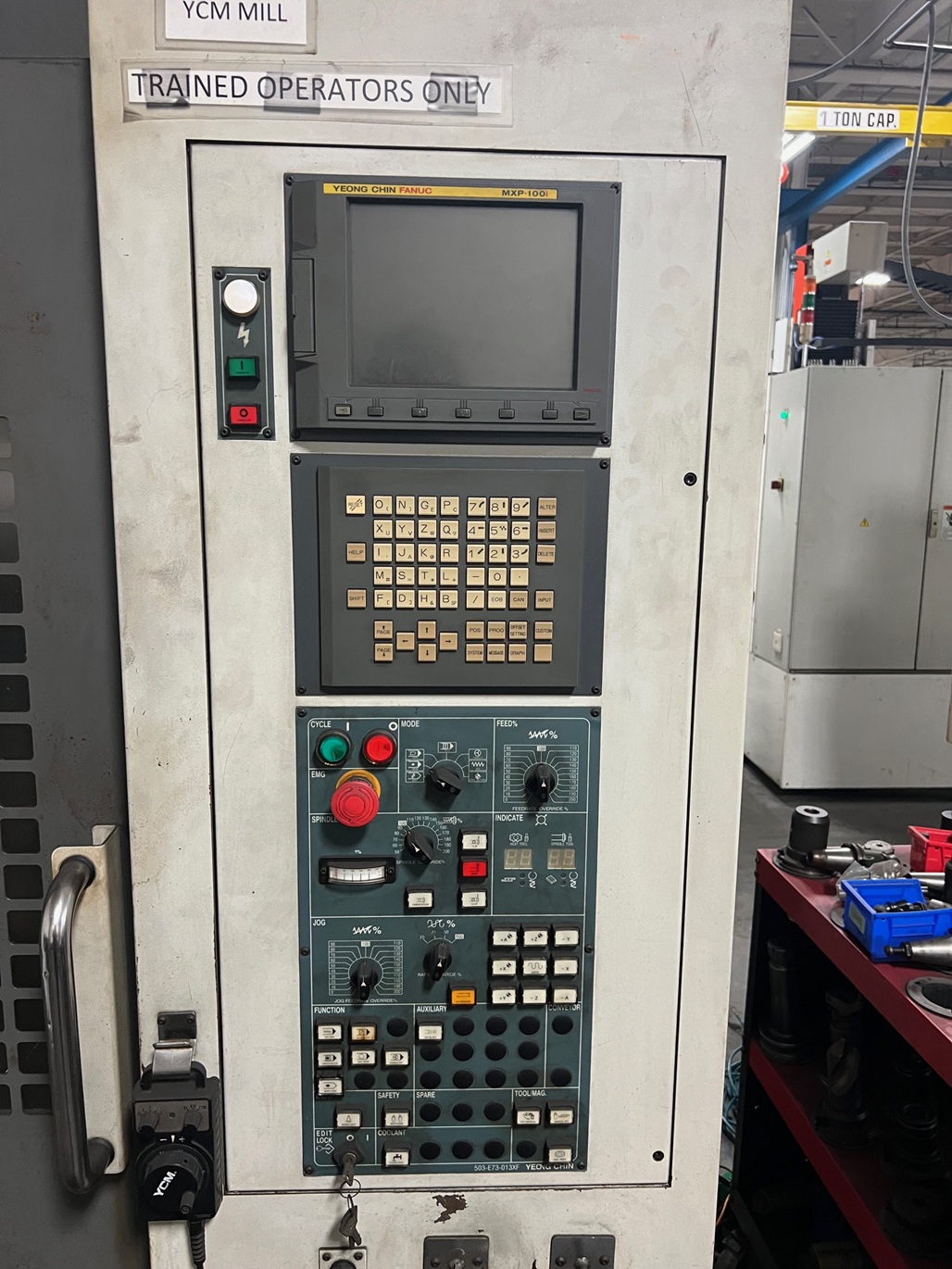

The machine is equipped with a Fanuc 21i-B 3-axis CNC control, flood coolant system, full coolant/chip enclosure, automatic lubrication system, and rapid traverse rates up to 1,417 IPM. Its combination of 10,000 RPM spindle speed, Fanuc control, compact work envelope, and fast rapids makes the XV-560A a capable choice for smaller precision components and general production machining.
