2012 Geka Hydracrop 110 AD

Ironworkers • Stock #31158

Machine Highlights

120 tom, 6" x 6" x 1/2" Angle Cap., 12 hp, 3.15" stroke, 28 SPM, 24" throat, 5 stations

Year2012

ManufacturerGeka

ModelHydracrop 110 AD

Control

Stock #31158

Call (256) 980-1200

▶ VIDEO

Specifications

Specification:

Punching Capacity120 Ton

Punch Capacity: Through 1.1" Thick Mild Steel1.1" Diameter

Angle Shear6" x 6" x 1/2"

Flat Bar Shear24" x 5/8"

Alernate Flat Bar Shear16" x 3/4"

Round Capacity2" Diameter

Square Capacity2" Square

Rectangle Notcher3.54: x 2" x 1/2"

Hydraulic CylindersDaul (2)

Workstations5

Stroke Length3.15"

Punching Speed (Stroke Per Minute)28 SPM

Throat Depth24"

Equipment & Options

Equipped With:Dual Cylinder Design allows Two Operators to Work Simultaneously

Five integrated workstations for punching, shearing, cropping, and notching.

Heavy-duty fabricated steel frame.

Adjustable hold-downs and gauging.

Foot pedal operation.

Designed for structural steel fabrication and general metalworking.

Machine Overview

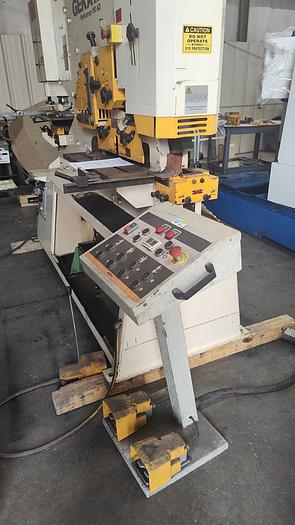

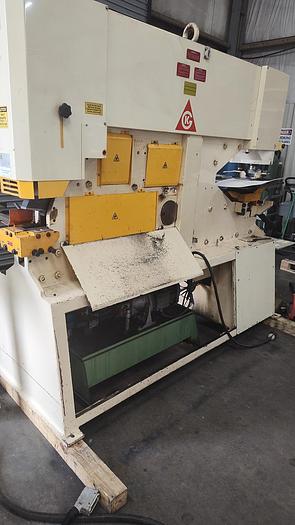

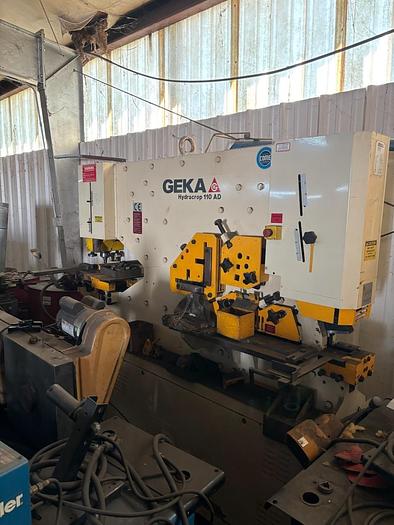

This 2012 Geka Hydracrop 110 AD Ironworker is a heavy-duty five-station fabrication machine designed for punching, shearing, cropping, and notching operations. It provides 120 tons of punching capacity, including a 1.1″ diameter hole through 1.1″ mild steel, along with 6″ x 6″ x 1/2″ angle shear capacity, 24″ x 5/8″ flat-bar shear capacity, and capacity for 2″ round or 2″ square stock. The machine features a 3.15″ stroke, 28 strokes per minute, and a 24″ throat depth.

Its dual-cylinder design allows two operators to work simultaneously, helping improve productivity in structural steel and general fabrication environments. Additional features include five integrated workstations, a heavy-duty fabricated steel frame, adjustable hold-downs and gauging, and foot-pedal operation. The Hydracrop 110 AD offers a versatile combination of high punching force and multiple fabrication functions in one compact machine.
