2023 Doosan Puma DNT 2600LM
CNC Lathes, 3-Axis or More • Stock #31155
Machine Highlights
15" Cutting Diamter, 40.6" Centers, 3.23" Spindle Bore, 3500 rpm, 35 hp, 12 pos turret, Live tooling, Tailstock, 10" chuck
Specifications
Equipment & Options
Machine Overview

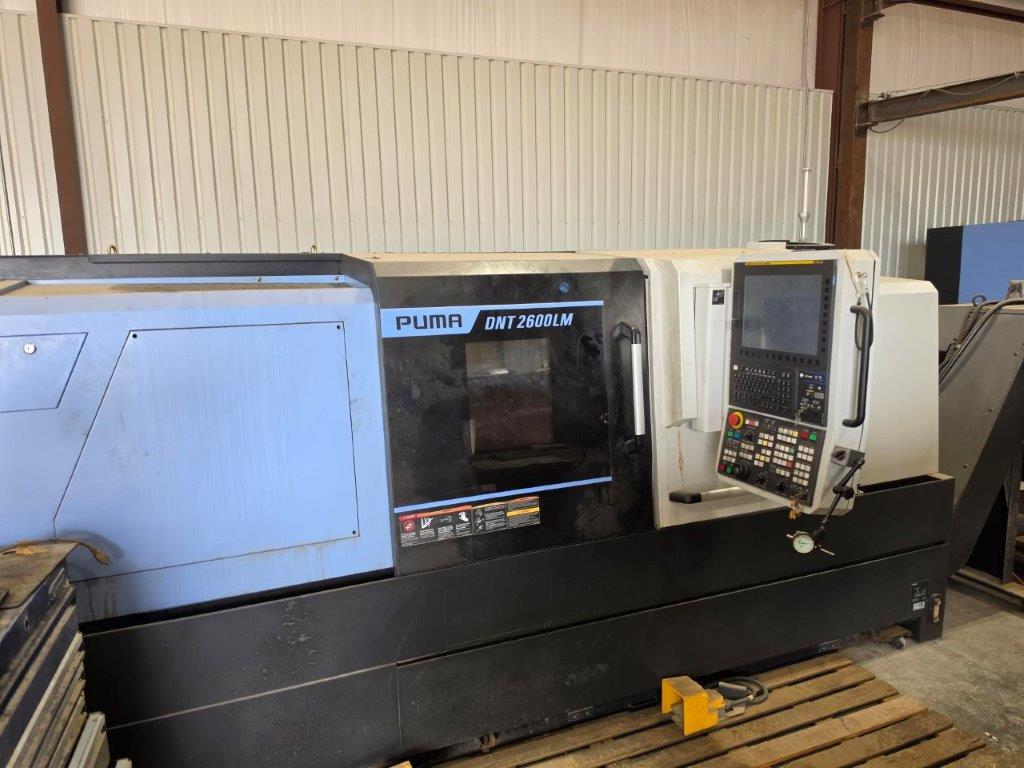

This 2023 Doosan Puma DNT 2600LM CNC Lathe is a late-model turning center with live tooling for productive turning and secondary machining operations in a single setup. It provides a 26″ swing, 14.96″ maximum machining diameter, 40.55″ between centers, and a 3.23″ spindle bore. The main spindle reaches 3,500 RPM with 35 HP, while the 12-station BMT-55 turret provides live-tooling capability at speeds up to 6,000 RPM.

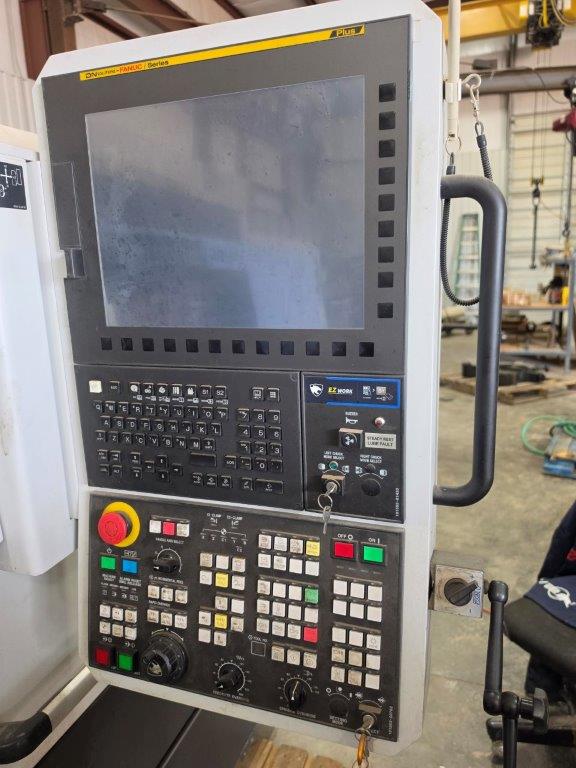

The machine is equipped with a Fanuc 0i-Plus CNC control with iHMI, 12-station BMT-55 live-tooling turret, hydraulic chuck, tailstock, chip conveyor, parts catcher, coolant system, and servo-driven turret. This combination of modern Fanuc control technology, live tooling, useful turning capacity, and production-oriented accessories makes the DNT 2600LM a strong choice for shops seeking a versatile late-model CNC turning center.
