2023 Doosan Puma 5100LC
CNC Lathes • Stock #31154
Machine Highlights
26" Turn Dia, 82" Centers, 10.78" Spindle bore, 1000 rpm, 60 hp, 10 pos turret, X-14" Z-85", Tailstock, under 1000 hours
Specifications
Equipment & Options
Machine Overview

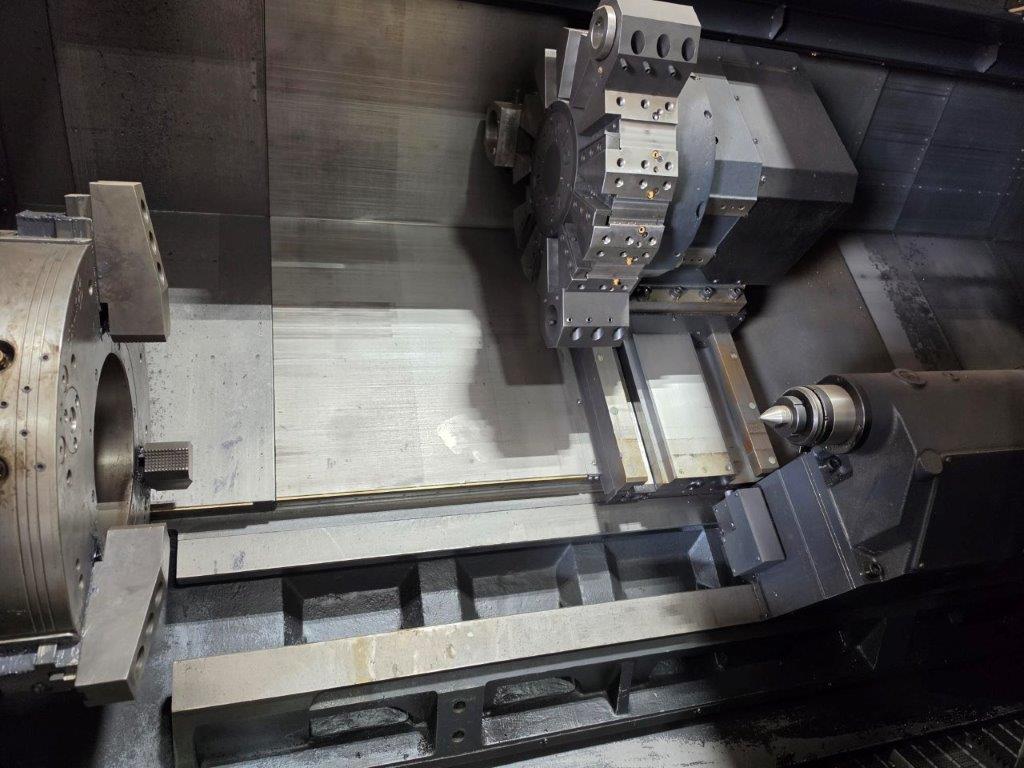

This 2023 Doosan Puma 5100LC CNC Lathe is a heavy-duty turning center designed for large-diameter, long-part machining. It offers a 35.4″ swing, 26″ maximum machining diameter, 82″ between centers, and a large 10.78″ spindle bore, with spindle speeds up to 1,000 RPM and a 60 HP main motor. X-axis travel is 14.3″ and Z-axis travel is 84.8″, while the 10-position turret provides a capable platform for demanding production turning applications.

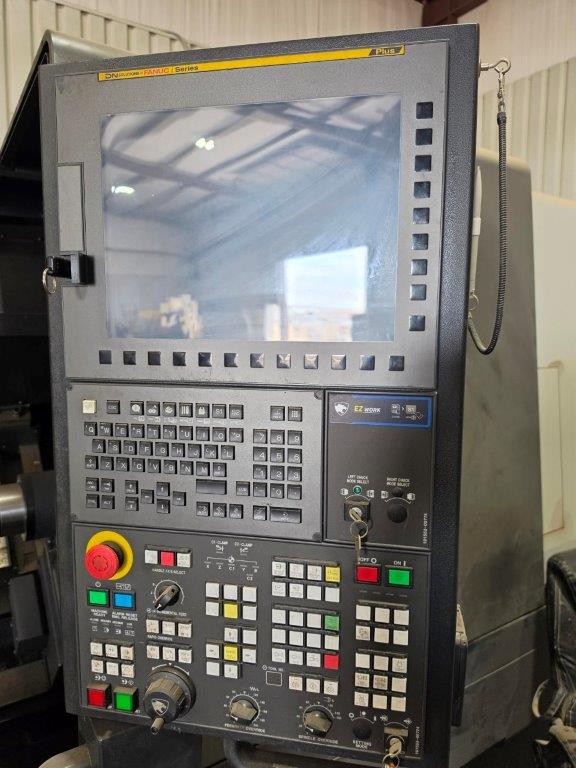

The machine is equipped with a Fanuc i-Series 2-axis CNC control, 3-jaw hydraulic chuck, hydraulic tailstock, chip conveyor, flood coolant system, 2-speed gearbox, box-way construction, automatic lubrication, full coolant/chip enclosure, Ethernet and USB connectivity, and MPG handwheel. With under 1,000 hours noted, this late-model Puma 5100LC combines substantial spindle capacity and long-bed capability with modern CNC features for heavy-duty turning work.
